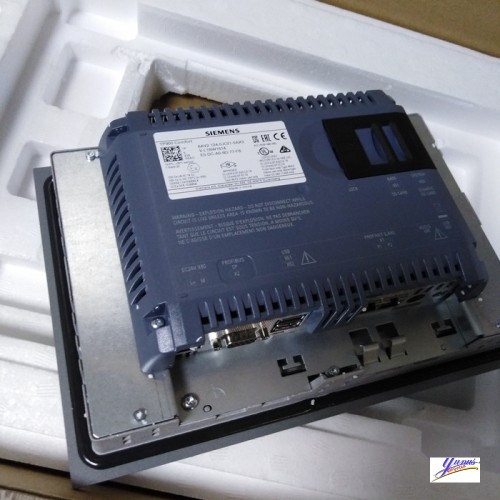

Siemens 6AV2124-1JC01-0AX0 KP900 Comfort 9.0 inch TFT widescreen display, 16 Mio colors

Display 9.0 inch TFT widescreen display, 16 Mio colors

Resolution 800 x 480 px

Control elements Touch screen

Membrane Keypad (28 keys),

26 function keys with LED

User memory 12 MB

Interfaces

2 x RJ 45 Ethernet for PROFINET

1 x RS 485/422 for PROFIBUS/MPI

2 x USB-host, 1 x USB- device

2 x SD card slot

Degree of protection IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout 250 x 166 mm (W x H) 338 x 206 (W x H)

Front panel 274 x 190 mm (W x H) 362 x 230 (W x H)

Device depth 63 mm 63 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages 4000

Message classes 32

Process pictures 500

Variables 2048

Vector graphics x

Bar graphics x

Curve diagrams f (t), f (x)

Recipes 300

Archiving 50

Visual Basic Scripts 100

Article No.: 6AV2124-1GC01-0AX0
