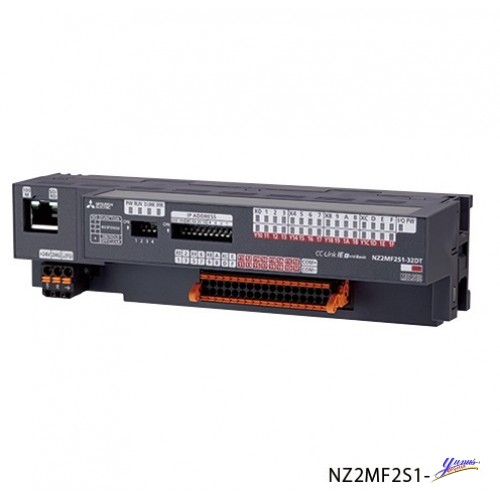

Mitsubishi NZ2MF2S1-32DT PLC CC-L IE Field Basic, 16 Input, DC24V, 16 Output, 24V 0.5, Sink, Spr. clamp
DIGITAL I/O MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Rated Input Voltage (VDC) | 24 |
| Rated Load Voltage (VDC) | 24 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,079 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 200 |
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,25 |
ORDER CODES
| European Order Code | 339027 |
| Global Order Code | 1WG011 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital I/O Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.462 KG |
| Volume | 0 CDM |
| Length | 0 CM |
| Width | 0 CM |
| Height | 0 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2MF2S1-32DT PLC CC-L IE Field Basic
- Brand: Mitsubishi
- Product Code: NZ2MF2S1-32DT
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
Tags: NZ2MF2S1-32DT
