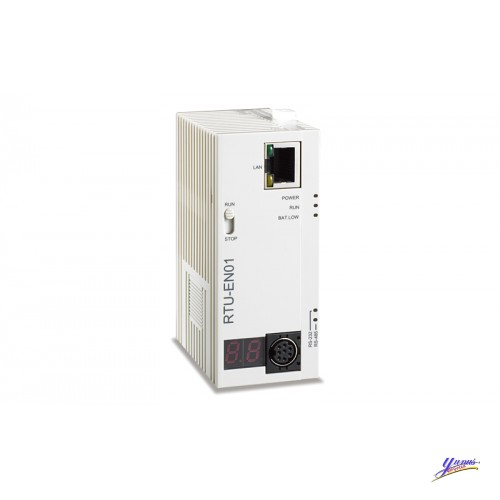

Delta RTU-EN01 Module for remote data collection (discrete and analog signals) and transfer to Ethernet

A Modbus TCP slave

Connectable to 8 DVP-S series analog I/O modules

Connectable to 256 points of digital I/O modules

The RS-485 port is connectable to max. 32 Modbus slaves

Smart PLC if-then function

Smart Monitor

Supports webpage setup & on-line monitoring

Serial Virtual COM available

Features & Benefits

A Modbus TCP slave

Connectable to 8 DVP-S series analog I/O modules

Connectable to 256 points of digital I/O modules

The RS-485 port is connectable to max. 32 Modbus slaves

Smart PLC if-then function

Smart Monitor

Supports webpage setup & on-line monitoring

Serial Virtual COM available

Specifications

  Network Interface

Transmission method: IEEE 802.3, IEEE 802.3u

Transmission interface: RJ-45 MDI/MDIX, no jumper cable required

Baudrate: 10/100M bps, auto-detection

Network protocols: ICMP, IP, TCP, UDP, DHCP, NTP, Modbus TCP, HTTP

Power supply voltage: 24 VDC (-15 to 20%)

Power consumption: 2 W

Insulation voltage: 500 V

  RS-485 Interface

Transmission method: RS-485

Connector: Removable

Serial baudrate: 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps

Data type: Modbus ASCII/RTU
