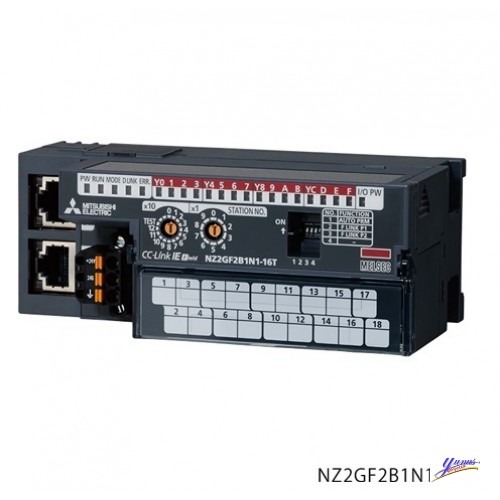

Mitsubishi NZ2GF2B1N1-16T PLC CC-Link IE Field I/O module;16 outputs;Transistor, sink;1-wire
DIGITAL OUTPUT MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | TRANSISTOR |
| Output Logic | SINK |
| Rated Load Voltage (VDC) | 12-24 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,13 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 133 |
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,3 |
ORDER CODES
| European Order Code | 338817 |
| Global Order Code | 1WF032 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital Output Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.379 KG |
| Volume | 528 CDM |
| Length | 120 CM |
| Width | 80 CM |
| Height | 55 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
LIFE CYCLE
| Predecessor | 291275 |
CAMPAIGNS
| Selling Status | Standard |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2GF2B1N1-16T PLC CC-Link IE Field I/O module
- Brand: Mitsubishi
- Product Code: NZ2GF2B1N1-16T
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
Tags: NZ2GF2B1N1-16T
