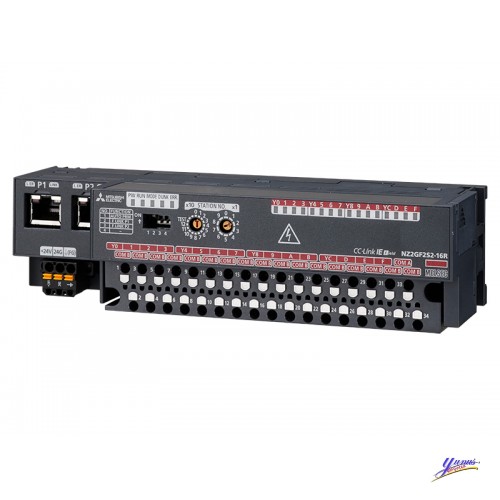

Mitsubishi NZ2GF2S2-16R CC-Link IE field network remote IO, 16 Points, DC24V/2A, AC240V/2A, Spring
DIGITAL OUTPUT MODULE
| Type | CC-LINK IE FIELD NETWORK |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied Stations | 1 |
| Integrated Digital Outputs | 16 |
| Output Type | RELAY |
| Rated Load Voltage (VAC) | 240 |
| Rated Load Voltage (VDC) | 24 |
| Wiring | SPRING CLAMP |
| Int. Current Consumption (A) | 0,19 |
PRODUCT DIMENSIONS & WEIGHT
| Width (mm) | 200 |
| Height (mm) | 50 |
| Depth (mm) | 68 |
| Weight (kg) | 0,45 |
ORDER CODES
| European Order Code | 312909 |
| Global Order Code | 1WF055 |
CLASSIFICATION DATA
| Product hierarchy | IAD50305 |
| Class Description | FA-MOD PLC: Digital Output Module |
| External Material Group | Standard Material |
AVAILABILITY
| Logistic Class | C |
PACKAGING DIMENSIONS & WEIGHT
| Gross Weight | 0.567 KG |
| Volume | 2.28 CDM |
| Length | 28,5 CM |
| Width | 8 CM |
| Height | 10 CM |
COMMODITY / IMPORT CODE
| Commodity Code | 85389099 |
| Country of Origin | JP |
ENVIRONMENTAL
| RoHS Compliance | COMPLIANT |
| REACH Limit Exceeded | NO |
| Dangerous Goods Regulations | NO |
Mitsubishi NZ2GF2S2-16R CC-Link IE field network remote IO
- Brand: Mitsubishi
- Product Code: NZ2GF2S2-16R
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
Tags: NZ2GF2S2-16R
