Schneider TSXETY210 Ethernet TCP/IP module - 10 Mbit/s - web server class A10
| range of product |
Modicon Premium Automation platform
|
|
|---|---|---|
| product or component type |
Ethernet TCP/IP module
|
|
| automation architecture |

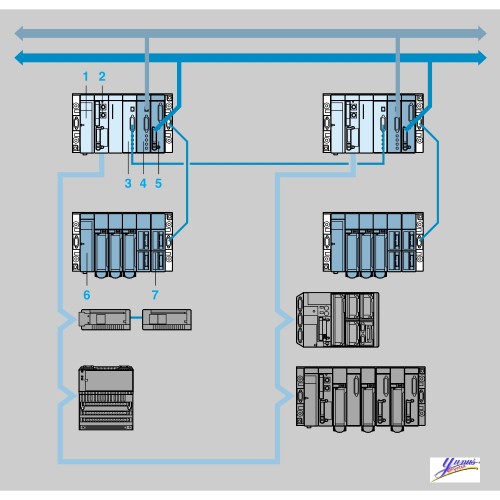

Premium Warm Standby
|
|
| physical interface |
AUI 100BASE-5 1 AUI cable
RJ45 10BASE-T 1 twisted pair |
|
| transmission rate |
10 Mbit/s
|
|
| communication service |
Modbus TCP messaging
SNMP agent Uni-TE messaging Common words Ethway/X-Way |
|
| supply |
Via the power supply of the rack
|
|
| local signalling |
1 LED collision detection (COL)
1 LED Ethernet network status (RUN) 1 LED Ethernet port fault (ERR) 1 LED transmission/reception activity (TX/TR) |
| communication port protocol |
Modbus TCP
Uni-Telway Ethway/X-Way |
|
|---|---|---|
| maximum number of connections |
64
|
|
| web server |
Transparent ready class A10
|
|
| marking |
CE
|
|
| product compatibility |
PL7 Pro
Unity Pro |
|
| current consumption |
1200 mA 5 V DC with remote power supply (AUI)
800 mA 5 V DC without remote power supply (RJ45) |
|
| module format |
Standard
|
|
| product weight |
0.34 kg
|
| standards |
EN 61131-2
FM Class 1 Division 2 group A FM Class 1 Division 2 group B FM Class 1 Division 2 group C FM Class 1 Division 2 group D |
|
|---|---|---|
| product certifications |
CSA 1010-1
UL 508 |
|
| IP degree of protection |
IP20
|
|
| ambient air temperature for operation |
0...60 °C
|
|
| relative humidity |
10...95 % at 60 °C without condensation
|
Schneider TSXETY210 Ethernet TCP/IP module - 10 Mbit/s - web server class A10
- Brand: Schneider
- Product Code: TSXETY210
- Availability: 10
-
$1,000.00
- Ex Tax: $1,000.00
Tags: TSXETY210
