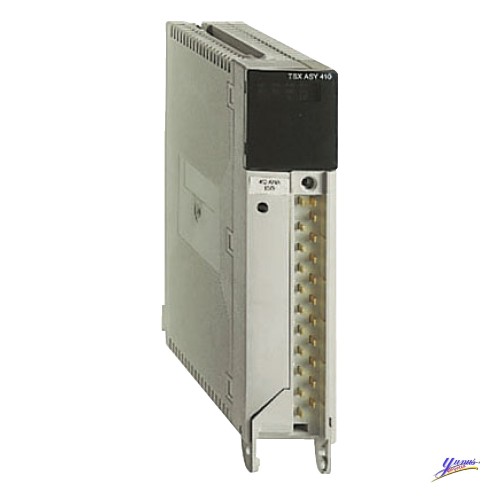

Modicon Premium Automation platform

Analog output module

4

Current 0...20 mA
Current 4...20 mA
Voltage +/- 10 V

11 bits + sign

2.5 ms

10.25 µA 0...20 mA
10.25 µA 4...20 mA
5.12 mV +/- 10 V

Screw terminal block

0.45 % of full scale +/- 10 V 25 °C
0.52 % of full scale 0...20 mA 25 °C
0.52 % of full scale 4...20 mA 25 °C
0.75 % of full scale +/- 10 V 0...60 °C
0.98 % of full scale 0...20 mA 0...60 °C
0.98 % of full scale 4...20 mA 0...60 °C

1500 Vrms

1500 Vrms

500 V

Overload protection
Short-circuit protection

<= 30 V

< 600 Ohm 0...20 mA
< 600 Ohm 4...20 mA
> 1000 Ohm +/- 10 V

< 0.3 mH

< 0.1 µF

CE

900 mA 5 V DC

Standard

(1)OUT_ANA_VOLT#0
(10)OUT_ANA_SHIELD#
(11)OUT_ANA_VOLT#2
(12)OUT_ANA_COM#2
(13)OUT_ANA_CUR#2
(14)OUT_ANA_SHIELD#
(15)OUT_ANA_SHIELD#
(16)OUT_ANA_VOLT#3
(17)OUT_ANA_COM#3
(18)OUT_ANA_CUR#3
(19)OUT_ANA_SHIELD#
(2)OUT_ANA_COM#0
(20)OUT_ANA_SHIELD#
(3)OUT_ANA_CUR#0
(4)OUT_ANA_SHIELD#
(5)OUT_ANA_SHIELD#
(6)OUT_ANA_VOLT#1
(7)OUT_ANA_COM#1
(8)OUT_ANA_CUR#1
(9)OUT_ANA_SHIELD#

0.35 kg

73/23/EEC
89/336/EEC
92/31/EEC
93/68/EEC
CSA C22.2 No 142
IEC 61131-2
UL 508
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D

ABS
BV
DNV
GL
LR
RINA
RMRS

0...60 °C

-25...70 °C

10...95 % without condensation for operation
5...95 % without condensation for storage

0...2000 m

Conformal coating Humiseal 1A33
TC

IP20

2
