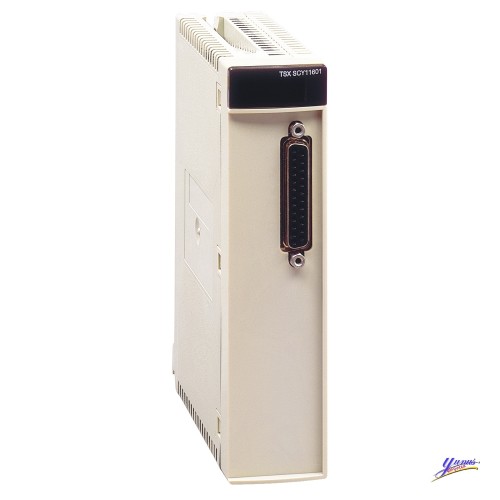

• Schneider TSXSCY11601 RS485 communication module - 2 twisted shielded pairs cable - 32 devices

Schneider TSXSCY11601 RS485 communication module - 2 twisted shielded pairs cable - 32 devices

Main
range of product
Modicon Premium Automation platform
product or component type
Communication module
software designation
Unity Pro
structure type
Heterogeneous industrial bus
Complementary
product compatibility
Atrium
Premium
method of access
Master/slave type
integrated connection type
1 serial link 1 SUB-D 25
communication port protocol
Modbus
communication port support
RS485 isolated
mode of transmission
Asynchronous in baseband
transmission frame
Character mode
RTU/ASCII
Uni-Telway
transmission rate
1.2...19.2 kbit/s
transmission support medium
2 twisted shielded pairs cable
number of devices
32
number of addresses
0...247
bus length
0...1300 m character mode
0...1300 m Modbus
0...1300 m Uni-Telway
tap links length
15 m
requests
120 words per request
1920 bits per request
control parameter
One CRC 16 on each frame
monitoring function
Diagnostic counters
Event counters
modbus funtions available
Event connection Modbus master 0C
Event connection Modbus slave 0C
Event counter Modbus master 0B
Event counter Modbus slave 0B
Identification Modbus slave 11
Slave identification Modbus master 11
Write n output bits Modbus slave 0F
Write n output words Modbus slave 10
Diagnostic Modbus master 08
Diagnostic Modbus slave 08
Exceptional read status Modbus master 07
Exceptional read status Modbus slave 07
Read bits Modbus master 01
Read input bits Modbus master 02
Read input bits Modbus master 04
Read n input bits Modbus slave 02
Read n input words Modbus slave 04
Read n output bits Modbus slave 01
Read n output words Modbus slave 03
Read words Modbus master 03
Write 1 bits or n bits Modbus master 05
Write 1 input word Modbus slave 06
Write 1 output bit Modbus slave 05
Write 1 word or n word Modbus master 06
local signalling
1 LED communication (CH0)
1 LED internal fault, module failure (ERR)
1 LED module operating (RUN)
current consumption
350 mA 5 V DC
module format
Standard
product weight
0.34 kg

Environment
ambient air temperature for operation
0...60 °C
ambient air temperature for storage
-25...70 °C
relative humidity
5...95 % without condensation
operating altitude
<= 2000 m
